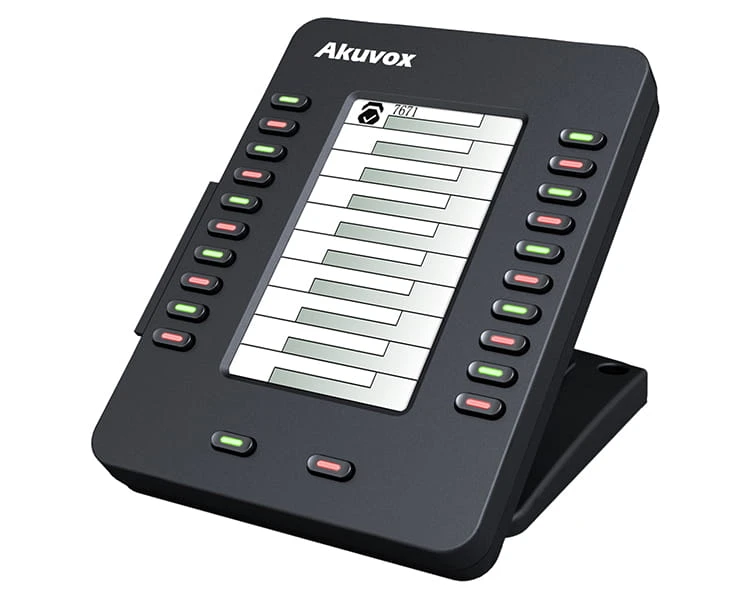

Akuvox Expansion Module EM53 for SP-R59P
Leave feedback on the product
Product code: EM53
Zadzwoń i zamów
Opis
Akuvox Expansion Module EM53 for SP-R59P
Extension module for IP phones
Akuvox EM53 is an expansion module for SP-R59P with a large graphic LCD display, 22 programmable keys and 22 two-color LEDs, and can be programmed for various functions including BLF, BLF List, Speed Dial, Hot Desking, Record, XML Browser, Account , call forwarding, answer, intercom, DTMF etc.
Specification of Akuvox EM53 adapter:
The most important
4.3 '' 272 * 480 graphic LCD with backlight, 4-bit grayscale
Supported by the Akuvox SP-R59P IP phone
22 keys and 22 bi-color LEDs
Main features
Different icons for each function
Multiple language support
Programmable keys for BLF, BLF List, Speed Dial, Hot Desking, Record, XML Browser, Account, Call Forward, Pickup, Intercom, DTMF, etc.
Firmware upgradeable
Up to 3 Daisy-chain modules
Supported by the Akuvox SP-R59P IP phone
Physical features
22 physical buttons, each with a two-color LED
4.3 '' 272 * 480 graphic LCD with backlight, 4-bit grayscale
2 RJ12 (6P6C) ports for input and output
AC adapter: Input: AC 100-240V; Output: DC 5V / 1A
Gift box size: 170 x 125 x 90mm
G.W: 0.50 kg
Quantity / carton: 20 pieces:
Carton dimensions: 475 x 380 x 297 mm
