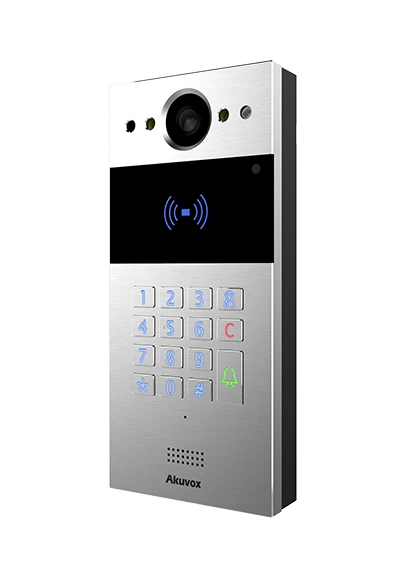

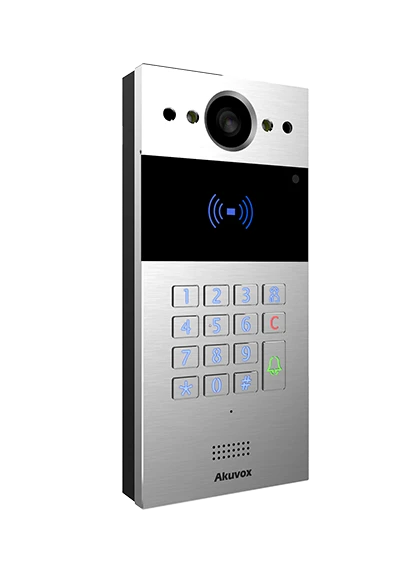

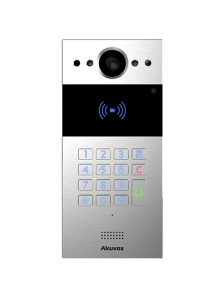

Akuvox R20K (surface)
The space-saving and highly compatible Akuvox R20K is a compact SIP video intercom with numeric keypad. It is usually used in residential and office buildings.
Compact external video intercom cassette (with RF card reader and keyboard), flush-mounted

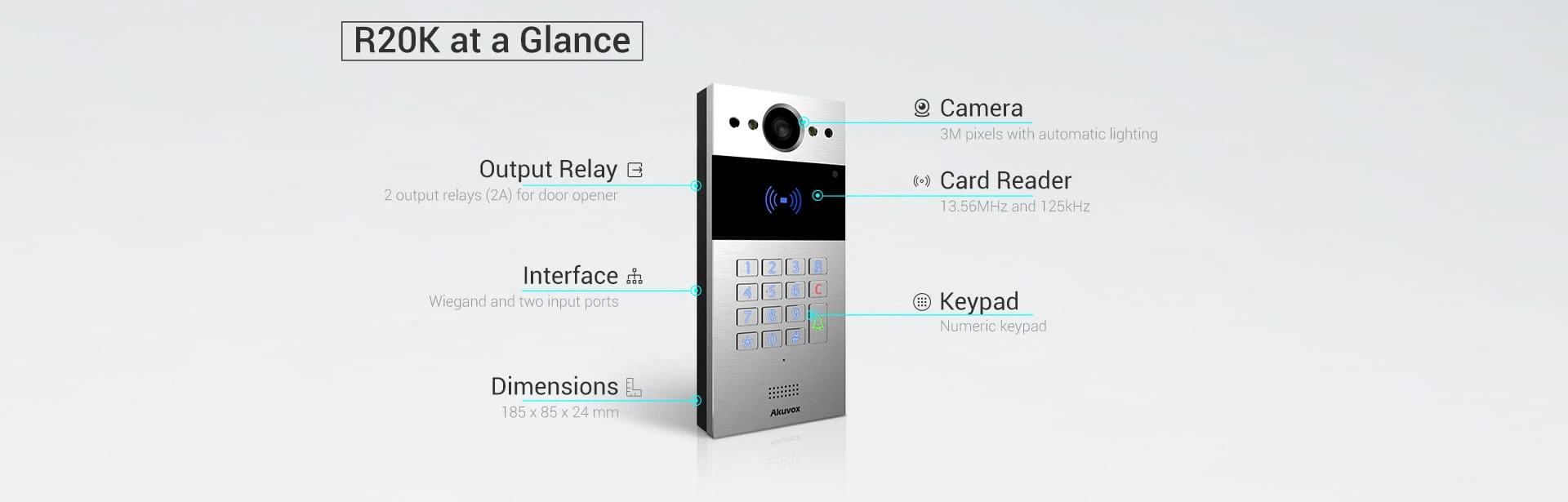

Akuvox R20K specification
General
Front panel: aluminum alloy
Camera: 3 million pixels, automatic lighting
Numeric keypad with additional buttons
Light sensor: support
Infrared sensor: Support
Wiegand Port: Support
RF card reader: 13. 56 MHz and 125 kHz
Relays: 2
Inputs: 2
Microphone: -40dB
Speaker: 42Ω / 3W.
Ethernet port: adaptive RJ45, 10/100 Mbps
Power-over 802.3af - Ethernet
12V DC connector (if not using PoE)
Waterproof and dustproof: IP65
Installation: flush-mounted
Flush-mounted DIM: 226 x 108 x 52 mm
Working Humidity: 10 ~ 90%
Working temperature: -30 ° C ~ + 65 ° C
Storage temperature: - 40 ° C ~ + 70 ° C
Audio
SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ, G.729
Wideband audio codec: G.722
DTMF: Inband, Out of DTMF Band (RFC2833), SIP Info
Noise reduction
Voice activation detection
Video
Sensor: 1/3 ”CMOS
Pixels: CIF, QCIF, VGA, 4CIF, 720p
Video Codec: H.264
Video resolution: up to 1280 x 720p
Max. image transfer rate: 720p-30 fps
Viewing angle: 120 ° (H) / 64 ° (V)
High intensity IR LEDs to illuminate the image in dark hours thanks to the internal light sensor
Compatible with third party video components such as NVR
Network and protocols
Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP
