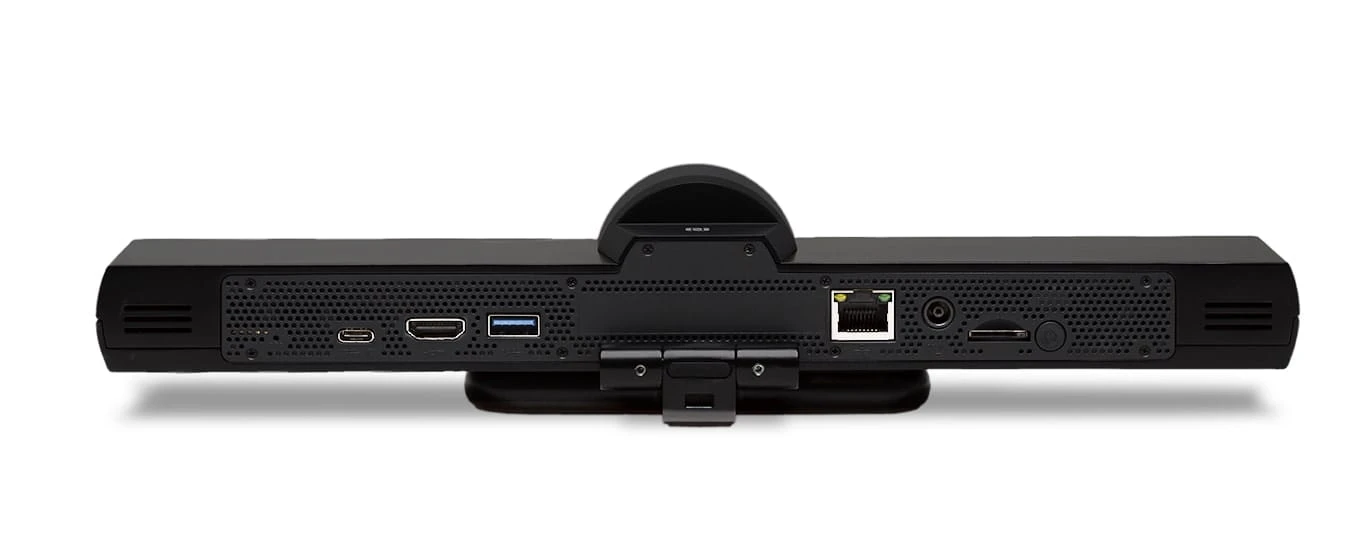

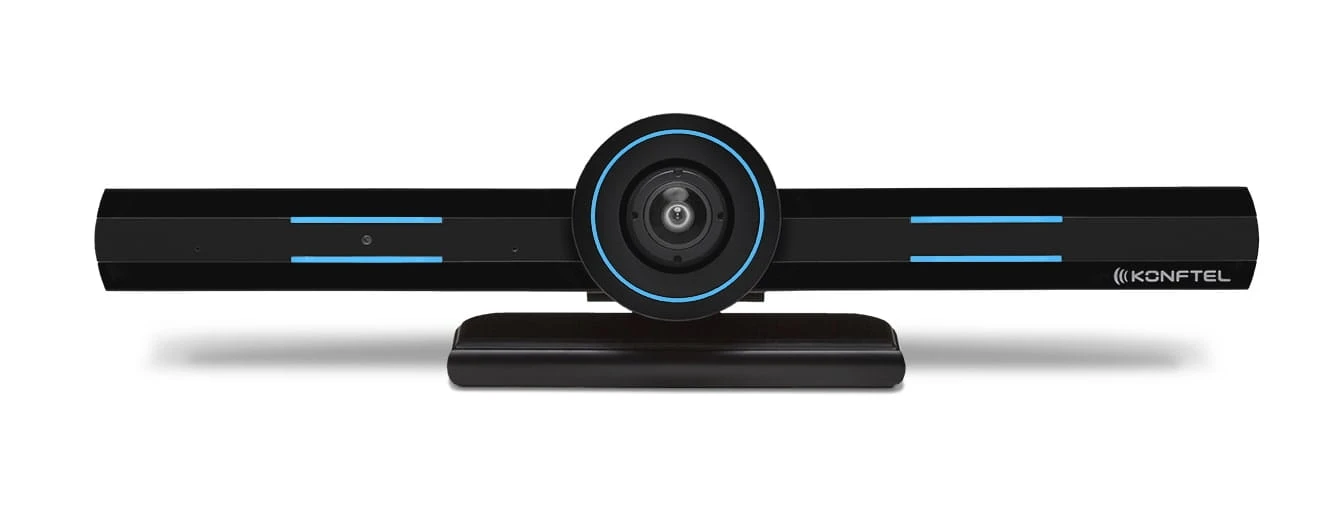

Konftel CC200 all-in-one camera

create your video system with a compact camera. With the Konftel CC200, you can prepare your rooms for video conferences in moments. The camera does not require a computer and is Android-based. Reliability, safety and ease of use are top priorities when choosing a videoconferencing solution. The universal Konftel CC200 camera minimizes the risk of interrupting a video call, and the built-in security will meet the requirements
of even the largest corporations. The Konftel CC200 has all the features you need for productive video conferencing: 4K camcorder with video resolution of 1080p @ 30, four built-in microphones and sound optimization with OmniSound® technology.

Key features of the Konftel CC200:

• All-in-one
• No computer required
• SIP / H.323 (to be connected to other video terminals)
• Android (we download applications from popular systems like Teams, Zoom, Bluejeans etc.)
• Size of meetings: up to 6 people
• 4K camera sensor
• Full HD Video 1080p
• USB
• Bluetooth®

Technical Specifications Konftel CC200:

GENERAL

• catalog number: 931501001
• Contents:
  - Konftel CC200
  - Remote control
  - Wall shelf
  - Power supply
  - 1.5m HDMI cable
  - 90 ° angled HDMI adapter
  - Quick Start Guide

CONNECTION

• IP: H.323, SIP (RVC 3261)
• Throughput: H.323 / SIP up to 4Mbps
• MCU compatibility: H.243, H.231 XMPP

CAMERA

• Sensor: 4Kp30
• 1080p30 video resolution
• Viewing angle:
  - horizontal 102 °
  - vertical 68 °
• 5x digital zoom
• Presets
• Crop a group

INTERFACES:

• 1x USB-C, 1 x USB-A 3.0
• Audio inputs: Bluetooth, USB
• Audio outputs: 1x HDMI, Bluetooth, USB

POWER

• Power supply 100-240VAC, 50-60Hz, 2.5A max

VIDEO

• 2 simultaneous channels: camera + presentation
• Codecs: H.264, H.264 High ProfileDual: H.239 (H.323) and BFCP (SIP)
  SVC (Scalable Video Coding) H.263 + is supported at resolutions up to 4CIF @ 15fps. RFC2429 support only
• Video input:
  - Camera video up to 1920x1080p30fps.
  - wireless presentations up to 1920x1080p15fps
• Video output:
• 1x HDMI, 3840 x 2160 @ 25, 30fps; 1920 x 1080 @ 25,
• 30fps; 1280 x 720 @ 25,30fps

SUBMITTING A PRESENTATION

• Wireless (WiFi - Miracast) up to 1080p15fps
• Presenting content using Android Apps and USB memory
• Wired via HDMI (requires Konftel Grabber). Supported computer resolution:
  1920x1080p30, 50, 60
  1680x1050p60
  1280x1024p60
  1280x720p50, 60
  1024x768p60

AUDIO

• Functions: echo cancellation, automatic gain control, noise suppression
• Codecs: G.711, G.719, G.728 and G.729 A / B, G.722, G.722.1, G.722.1
• Opus Annex C
• 4 microphones

SERVICE

• Menu: 25 languages
• Infrared remote control
• Management API
• Integration with the Microsoft Exchange calendar
• Android applications can be downloaded to the device and used with the video communication application
• Konftel CC200
• Support for Google Services Framework with OpenGapps.
• Support for touch screens
• Support for an external keyboard and mouse via USB or Bluetooth

RECORDING

• Recording to USB memory (FAT32, EXT2, EXT3 and EXT4)
• Record video calls as well as local image
• 720p25 recording resolution
• API commands for archiving recordings on the FTP server

NETWORK

• Simultaneous support for both IPv4 and IPv6
• Automatic discovery of the GK server.
• QoS support: IP Precedence, IP Type of Service (ToS),
• Differentiated Services (diffserv).
• Adaptive IP packet management:
• Automatic adaptation of the connection to the link state
• Packet Loss Masking
• Firewall traversal:
• Auto NAT discovery HTTP and STUN H.460.18, H.460.19 “Keep Alive”
• Protocols: DHCP, DNS, HTTP, HTTPS, RTP / RTCP, SNTP, STUN, TCP / IP, TELNET, TFTP, 802.1q and 802.1p.
• Interfaces:
  - 10/100/1000 Base-T full-duplex (RJ-45).
  - Wi-Fi (802.11a / b / g / n, 802.11ac, Hotspot).

SECURITY

• Built-in encryption
• H.323 security over H.235v3 / Annex D. SIP over SRTP and TLS 1.2, encryption up to AES-256.
• SIP “Digest” (MD5) Authentication RTP encryption with AES-256.
• Public key with support for Diffie-Hellman (2048 bits), RSA (up to 4096 bits).
• Cryptographic hash (up to SHA-512).
• Access via HTTPS.
• Whitelist support
• Free updates
