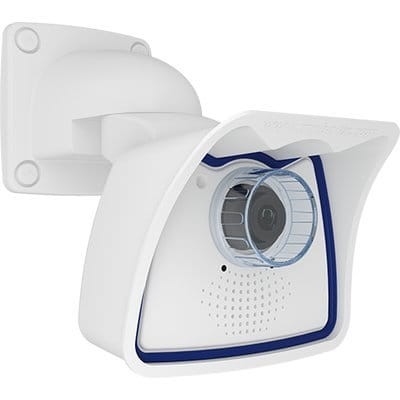

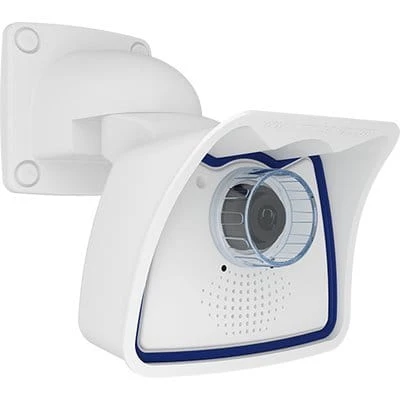

Mobotix Mx-M26B-6N119

Overall

Product Designation

M26B Allround

Mx Ordercode

Mx-M26B-6N119

Intro Product

IP camera with 6 Megapixel Moonlight Sensor, B/W (night) • ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG • Tele Lens B119 (focal length 11.9 mm, f/1.8, 31° x 23°) • Max. image size: 6MP (3072 x 2048) • IP66/IK10, -40 to 50°C (-40 to 122°F) • Internal DVR: 4 GB microSD • HD Audio with integrated microphone and speaker • Temperature sensor, MxActivitySensor, MxAnalytics, shock detector • Ethernet patch cable 0.5 m/1.6 ft • Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; I/O and RS232 via MX-232-IO-Box (MX-OPT-RS1-EXT)

Camera Type

Box Camera

Dual Camera

No

Manual Lens Alignment

No

Microphone

Yes

Speaker

Yes

Application Area

Indoor

Outdoor

MxBUS

Yes

Housing Shape

Fixed Network

Housing Color

white

Technical Data

Ambient Temperature (°C)

-40...+50 °C (-40 ... 122 °F; Operational temperature)

Cold start at -30 °C (-22 °F)

IP Class

IP66

IK Class

IK10

Certificates

• EN55032:2012
• EN55022:2010;
• EN55024:2010;
• EN50121-4:2015
• EN61000-6-1:2007;
• EN 61000-6-2:2005
• EN61000-6-3:2007+A1:2011
• EN61000-6-4:2007+A1:2011
• AS/ NZS CISPR22:2009+A1:2010
• CFR47 FCC part15B

MTBF (h)

80,000

PIR

No

Audio

Microphone/ Loudspeaker, both 16bit/16kHz (HD-Wideband-Audio)

DVR

• Camera-internal via microSD card
• External on USB device
• External on NAS
• Full image recording regardless of live image zoom
• MxFFS
• Pre-alarm and post-alarm images
• DVR monitoring with error notification

Video Phone

Yes

Protocols

IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722

Ethernet

Ethernet 10/100, IPv4/IPv6, MiniUSB;

IO and RS232 via Interface Boxes (accessories)

Environmental Sensors

• temperature sensor
• noise sensor
• shock sensor (with later SW update)
• other sensors/IO via MxMessageSystem

Overvoltage Protection

via MX-Overvoltage-Protection-Box

Mounting Options

Wall

Ceiling

Pole

CPU

i.MX 6 Dual Core incl. GPU

RAM

1GB

Image Angle horizontal

31°

Image Angle vertical

23°

Focal Length

11.9 mm

Aperture

f/1.8

Max. Frame Rate

• MxPEG*: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 14@5Mp, 12@6MP
• MJPEG*: 25@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5Mp, 4@6MP
• H.264: 25@Full-HD, 20@QXGA

* Only Single Core used

Max. Image Size

6MP (3072x2048)

Lens(es)

B016 to B500

Image Format

Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)

PTZ

Digital pan/tilt/zoom; max. zoom 8x (continious)

Camera Optics

Night

Day

Light Sensitivity

• Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
• BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s

Video Codecs

• MxPEG, M-JPEG, JPEG (max. output fromat 6MP)
• H.264 (max. output format QXGA; bandwith limitation possible)

ONVIF compatibility

compatible

Image Sensor

1/1,8“ CMOS sensor, 6MP (3072x2048), progressive scan

Power Consumption (W)

Typ. 5 W

Power consumption increases due to connected consumers:

• MxBUS max. 3 W
• USB max. 2.5 W
• total max. 4 W

Power Supply

PoE IEEE 802.3af

Status LED

2 (Multi-Color)

Interfaces

• Ethernet 100BaseT (MxRJ45)
• MiniUSB (MxMiniUSB)
• MxBus

Signal Input

via Accessory (MX-232-IO-Box)

Signal Output

via Accessory (MX-232-IO-Box)

RJ45 Ethernet Connectors

1

Height Product

189

Width Product (mm)

140

Depth Product (mm)

220

Weight Product (g)

350

Software

Camera Software (From Version)

5.1.0.x

Software Features

• Multistreaming
• Multicast
• vPTZ
• Programmable exposure windows
• Single-frame capture
• Full featured recording (MxFFS Archive, continuous recording, full image recording with audio)
• Time and event controlled recording
• Weekly scheduled arming considering holy days
• Web functionality
• Logo generator
• Linked event logic
• Master/slave arming
• Several time-controlled pirivacy zones
• Custom voice messages
• VoIP phone
• Remote control
• Program interface/HTTP-API
• Secure FTP

Security

Tamper Detection

Yes
